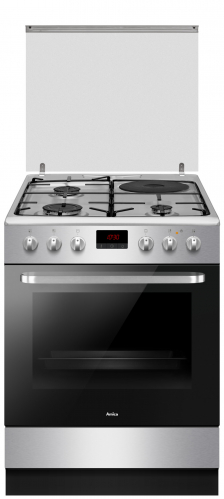

ACM3506X/1

ACM3506X/1

ACM3506X/1 ACM3506X/1

Specification

FEATURES

Additional function - Cleaning 3500W Cleaning system Pyrolitic Defrosting yes
EasyClean enamel Yes Even Baking Yes HotAir circulation + bottom heat (pizza) 3200W
HotAir circulation 2100 W Gas spark ignition In Knobs Front left heating zone dimension (cm) 9.4
Left front gas burner energy effciency 55.5 % Front left heating zone power rating (kW) 3 Left front zone type FL Gas
Rear left heating zone dimension (cm) 6.9 Left rear gas burner energy effciency 55.5 % Rear left heating zone power rating (kW) 1.75
Left rear zone type RL Gas Additional function - Independent light Yes Pan supports quantity 2 Number of oven cooking functions 11 Number of power levels 6 Preheating 4
Preheat time until 180°C 4 ' Rapid preheating in functions zone 3600W Front right heating zone dimension (cm) 4.6 Right front gas burner energy effciency 55.5 % Front right heating zone power rating (kW) 1 Right front zone type FR Gas Rear right heating zone dimension (cm) 18 Right rear zone energy consumption RR 194.5 Wh/kg Rear right heating zone power rating (kW) 1.2 Right rear zone type RR Electric Defrosting 60W Grill 1500 W Temperature limiter Yes Top and bottom heat + fan 2000 W Top heat + bottom heat (conventional) 2000 W Top heat + grill + fan 2400 W Hob energy consumption 194.5 Wh/kg Gas hob energy effciency 55.5 % Type of heating Multifunctional Control type By oven

Equipment

Cavity colour Black Door opening system Standard Reflex glass No reflex

Technical data

Bottom heater 1100 W Connection cable colour White Connection type 3N~230/400 V
Display color Red EEI 81.7 Energy consumption for conventional mode 0.99 kWh
Energy consumption for fan-forced mode 0.67 kWh Energy source Gas/Electricity Flame safety valve Yes
Pan support type Enamel Steel Grill power 1500 W Gross volume 0.4327 m³
Total power of hob 1.2 kW Lighting 25 W Max temperature outside on oven door glass 45 °C
Net depth 600 mm Net height 850 mm Net weight 52 kg
Net width 600 mm Number of baking levels 5 Number of cavities 1
Number of heating elements 4 Net oven capacity - main cavity 65 l Type of plug or cable France Position of connection cable inlet Bottom_Left Connection cable Power cord without plug Connection cable length 130 cm Total power of product 4.8 kW Ring heater 2100 W Standby power consumption < 1 W Top heat + grill (supergrill) 2400 W Total gas consumption 418.44 g/h Total gas power of product 5.75 kW Total gas power of hob 5.75 kW Hob type Mixed Top heater 900 W
